Wheelset Presses

BBM Railway Equipment offers the most advanced wheel pressing equipment available in the industry. Wheel-set Presses are used to mount and dismount all of the elements on the axle (wheels, brake discs, gears and bearings). With both single and double cylinder versions available and capacities ranging from 200 to 600 US tons, our vast range of machines can satisfy all customer requirements in both maintenance and mass production applications. All BBM wheel pressing equipment can be equipped with remote diagnostic capabilities as an option for the most efficient machine support.

Contact Us For More Information!

Products

1.5 Fully Automatic Double Cylinder Wheel Press1

Fully Automatic
Double Cylinder
Wheel Press

????????????????????????????????????

Double
Cylinder
Wheel Press

1.3 Single Cylinder Wheel-set Press1

Fully Automatic
Single Cylinder
Wheel Press

1.2 Semi Automatic Single Cylinder Wheel Press

Semi-Automatic
Single Cylinder
Wheel Press

1.1 Single Cylinder Wheel Press

Single
Cylinder
Wheel Press

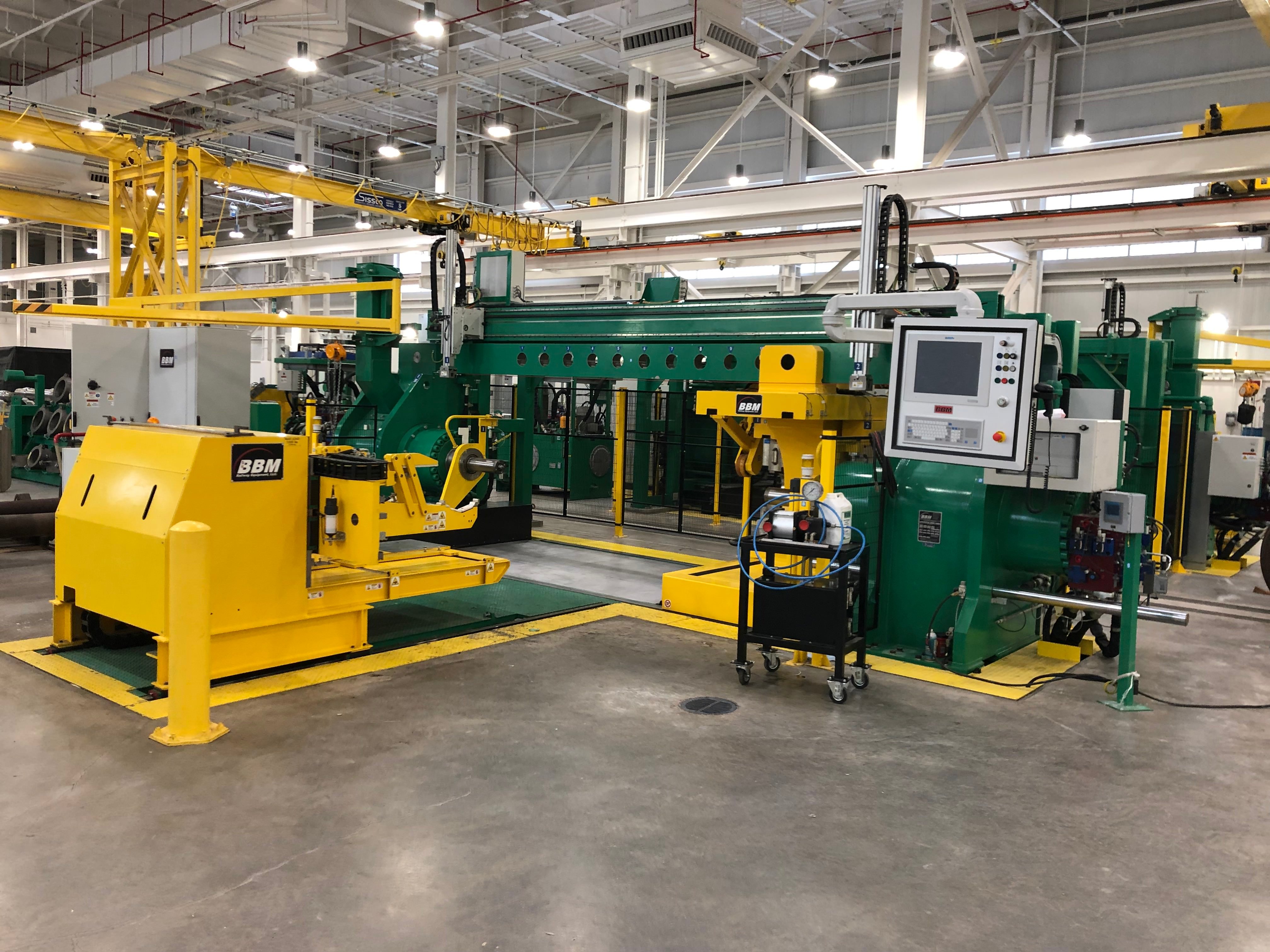

Fully Automatic Double Cylinder Wheel Press

Our fully-automatic double cylinder wheel press is the most advanced wheel press machine available on the market today. Available in capacities ranging from 200 to 600 US tons, this machine features a precisely positioned cylinder on each side of the machine along with our state-of-the-art measuring system that utilizes a high-tech servo system and a series of analog laser measuring devices to position each wheel-set component with high precision. A rotation device can also be supplied with the equipment to perform wheel back-to-back, axial run-out and radial run-out measurements after the mounting process has been completed.

Contact us for more information!

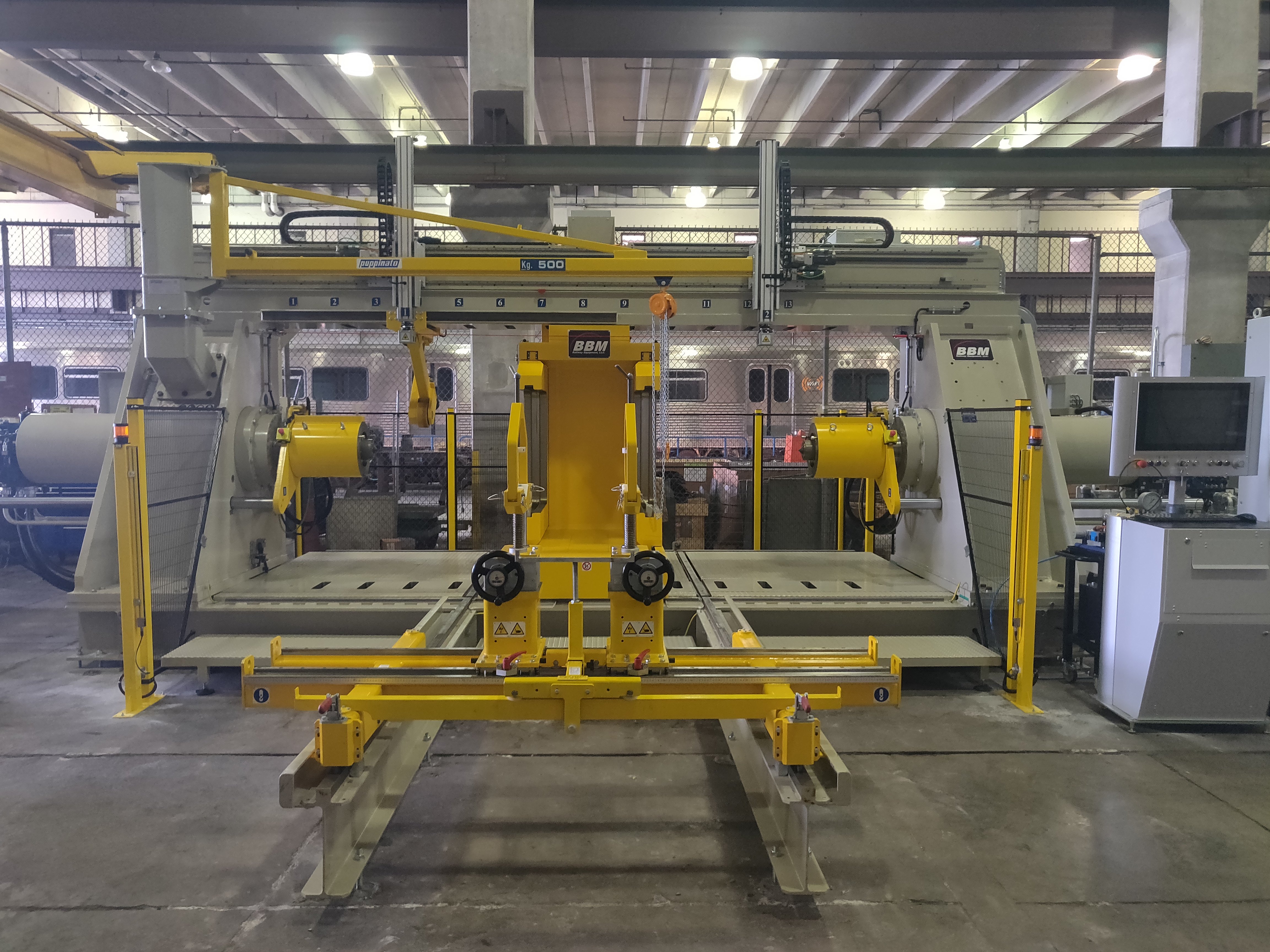

Double Cylinder Wheel Press

The double cylinder wheel press features a pressing cylinder on each side of the machine to increase the cycle time and capabilities of the machine. Each cylinder is precisely positioned utilizing a pair of linear encoders. This machine can be equipped with several options, including a manual or automatic carrier, wheel-set lift table, gearbox jib crane, and more; making this machine a great option for transit rail maintenance facilities.

Contact us for more information!

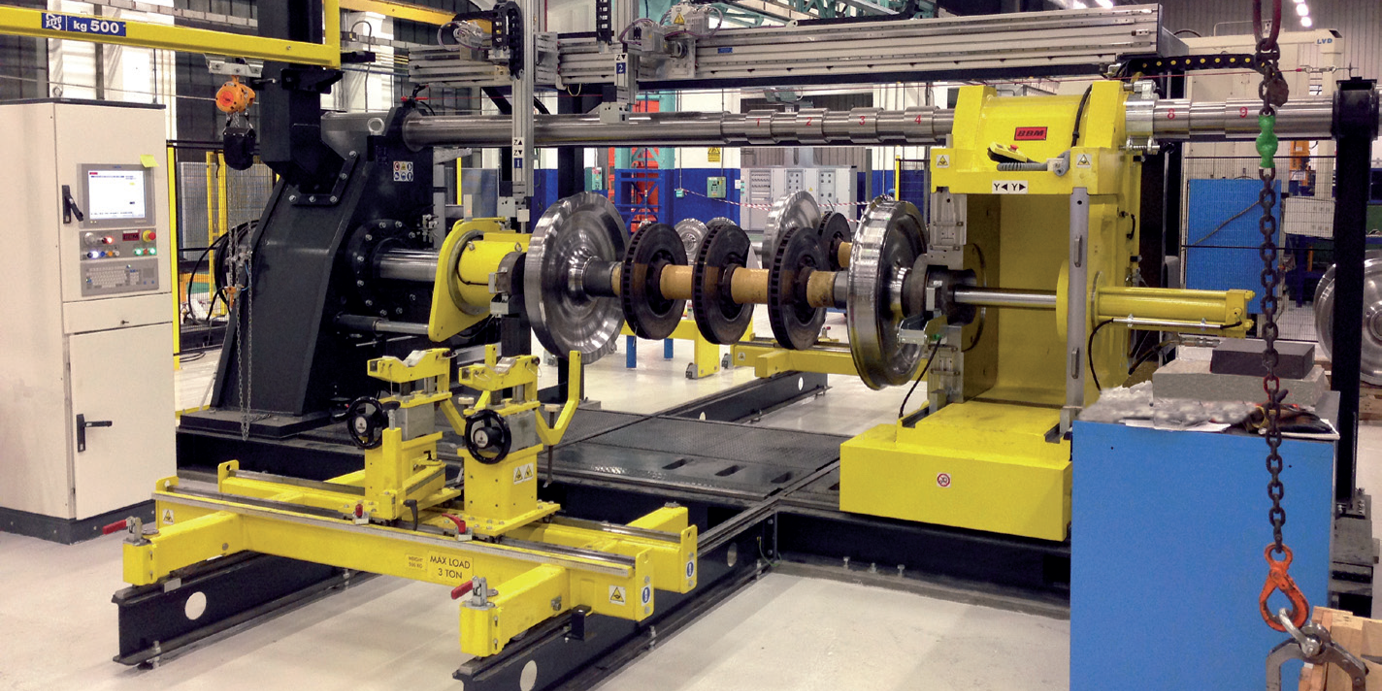

Fully Automatic Single Cylinder Wheel Press

The fully-automatic single cylinder wheel press features an automatic positioning measuring system. The location of the measuring system components is completed automatically by utilizing a high-tech servo system. The wheel-set component can be precisely positioned on the axle by the machine with a series of analog laser measuring devices. Utilizing a pair of sliding abutments, 180° rotation of the wheel-set is NOT required for mounting components on the opposing side of the axle.

Contact us for more information!

Semi-Automatic Single Cylinder Wheel Press

The semi-automatic single cylinder wheel press features a manual positioning measurement . The location of the measuring system components are completed manually by the operator while the wheel-set component is precisely positioned on the axle automatically by the machine with an analog laser measuring device. Utilizing a pair of sliding abutments, 180° rotation of the wheel-set is NOT required for mounting components on the opposing side of the axle.

Contact us for more information!

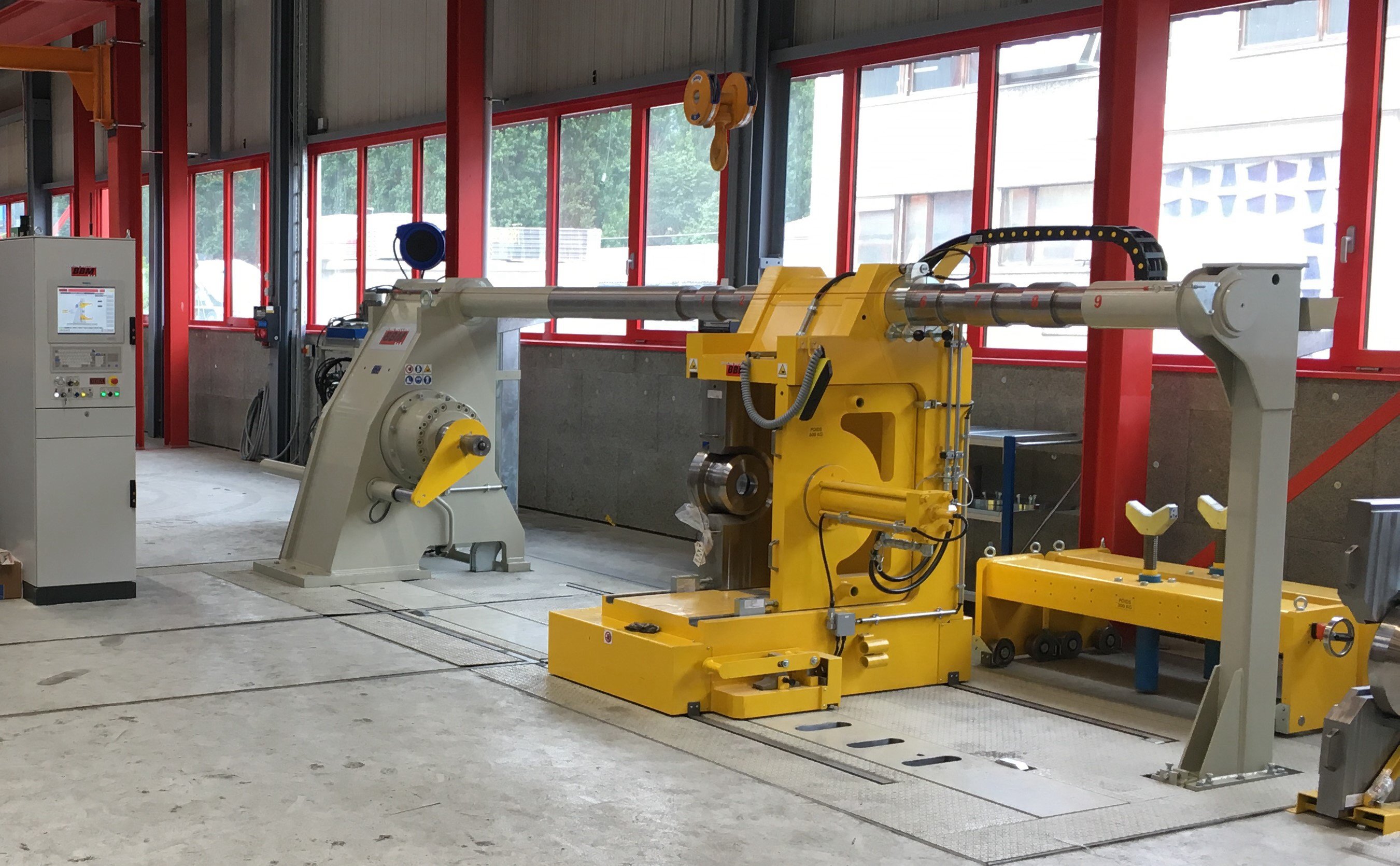

Single Cylinder Wheel Press

The basic single cylinder wheel press is the simplest and most versatile type of wheel press that we offer. This economical machine is capable of mounting and demounting operations on numerous configurations of wheel-sets. 180° rotation of the wheel-set is required for pressing components on the opposing side of the axle.

Contact us for more information!
