Truck / Bogie Testing Stands

BBM Railway Equipment offers a full line of truck pressing and/or testing equipment.  These machines range from basic truck presses, used to simulate the weight of the railcar, to the most advanced, fully automatic truck testing stands, used to perform load testing and geometrical measurements of the truck assembly. All BBM truck pressing/testing equipment can be equipped with remote diagnostic capabilities as an option for the most efficient machine support.

Contact Us For More Information!

Products

Hi Tech
Truck Testing
Stand

Closed Frame
Truck Testing
Stand

Open Frame
Truck Testing
Stand

Closed Frame
Truck
Press

Open Frame
Truck
Press

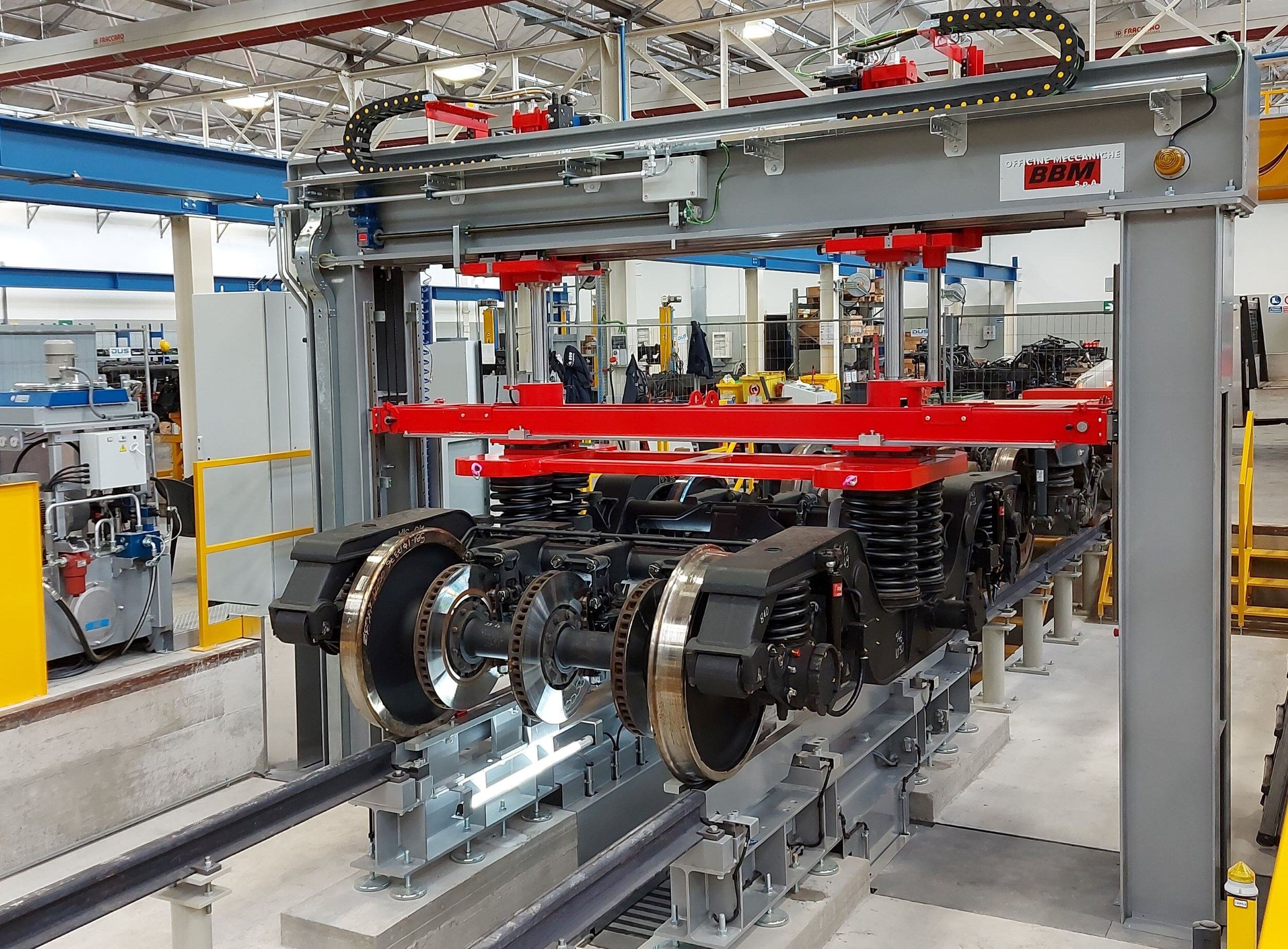

Hi Tech Truck Testing Stand

Our hi-tech truck testing stand is the most advanced truck testing machine available on the market today. This closed frame machine features a pair of precisely positioned hydraulic cylinders on each side of the machine along with our state-of-the-art wheel load and wheel position measuring systems in all four corners for each wheel. A specified load can be applied to the truckfor assembly and tramming purposes while measuring the load that is transferred to the wheels of the truck assembly. This machine is also capable of additional measurements such as; wheel gauge, wheel base, axle parallelism, wheel diagonals, center of gravity, and more.

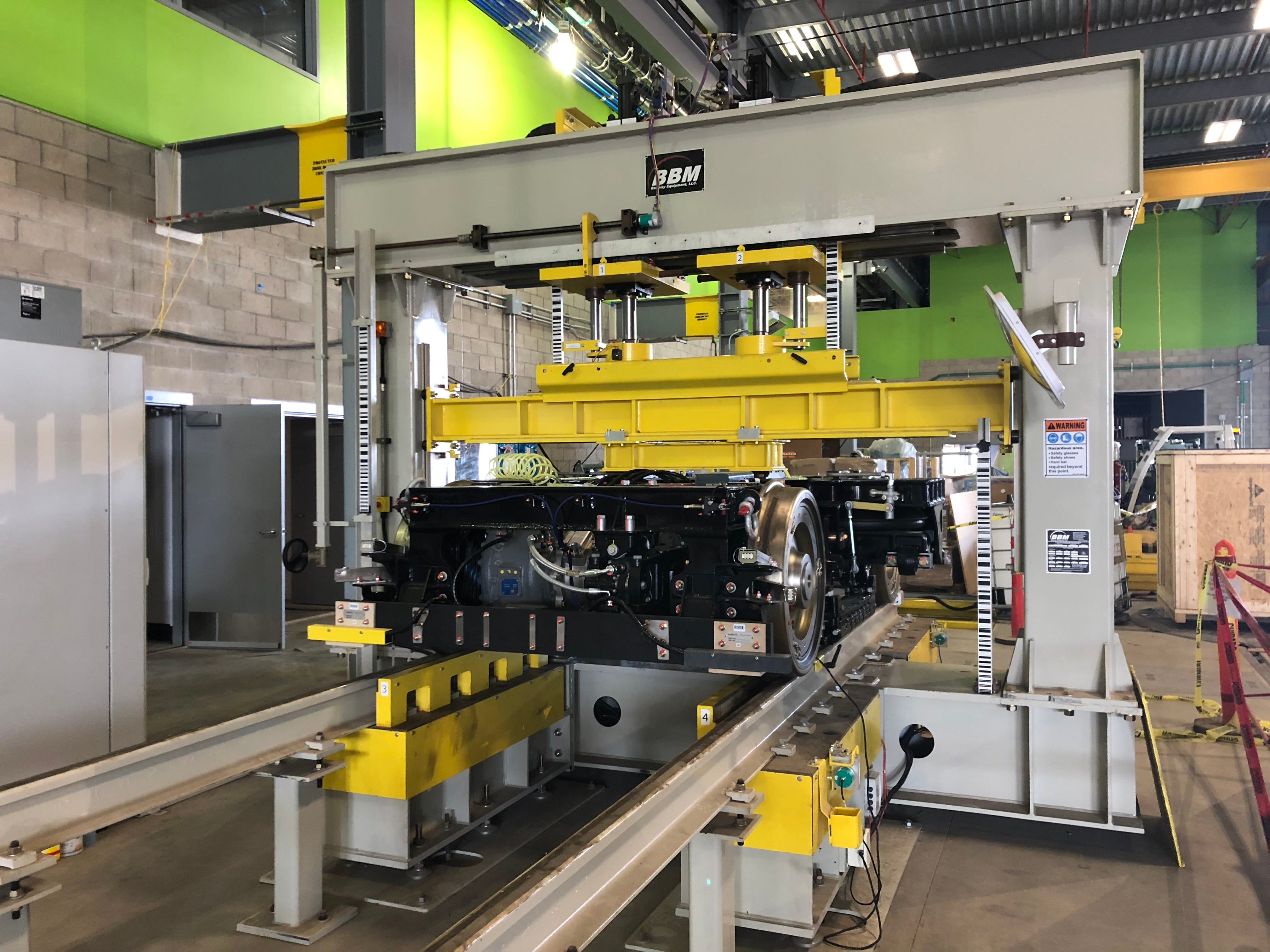

Closed Frame Truck Testing Stand

The closed frame truck testing stand is designed to apply a specified load to the truck assembly for assembly and tramming purposes while keeping all of the stresses from high pressing forces self-contained within the equipment along with the capability to measure the loads that are transferred to each wheel of the truck assembly. The operator can view the force being applied to the truck assembly by the hydraulic pressing cylinders and the forces being applied to the rails at the wheels in real-time; with minimal implications to the foundation below the equipment.

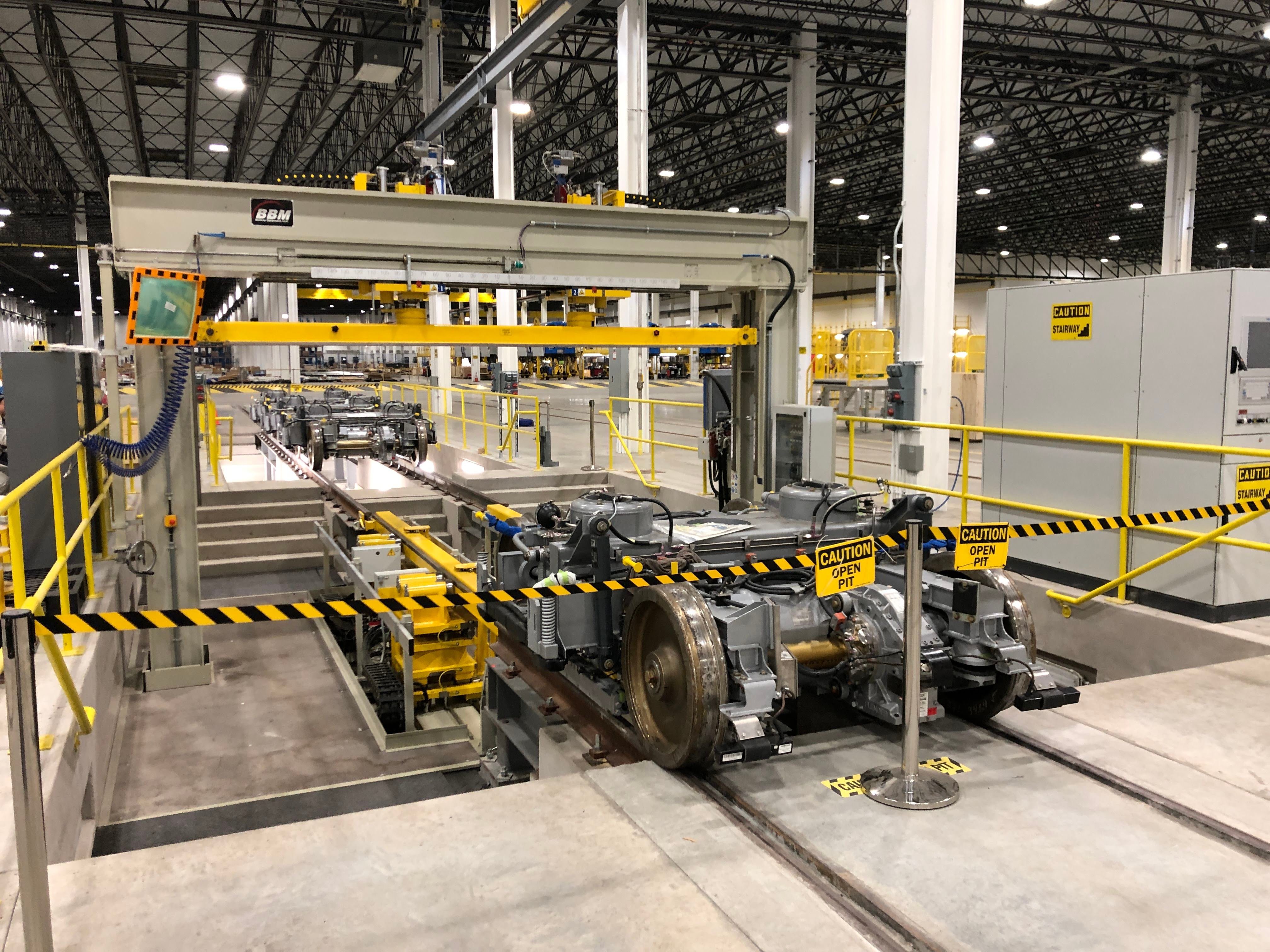

Open Frame Truck Testing Stand

The open frame truck testing stand is designed to apply a specified load to the truck assembly for assembly and tramming purposes while measuring the load that is transferred to the wheels of the truck assembly. Utilizing a series of calibrated load cells for precise force measurement, the operator can view the force being applied to the truck assembly by the hydraulic pressing cylinders and the forces being applied to the rails at the wheels in real-time.

Closed Frame Truck Press

The closed frame truck press is an enclosed machine developed for applying a specified load to the truck assembly with hydraulic pressing cylinders for assembly and tramming purposes while keeping all of the stresses from high pressing forces self-contained within the equipment. The machine can precisely simulate AW-0 – AW-3 loading conditions with closed-loop control to properly inspect and adjust the operating height of the truck with minimal implications to the foundation below the equipment.

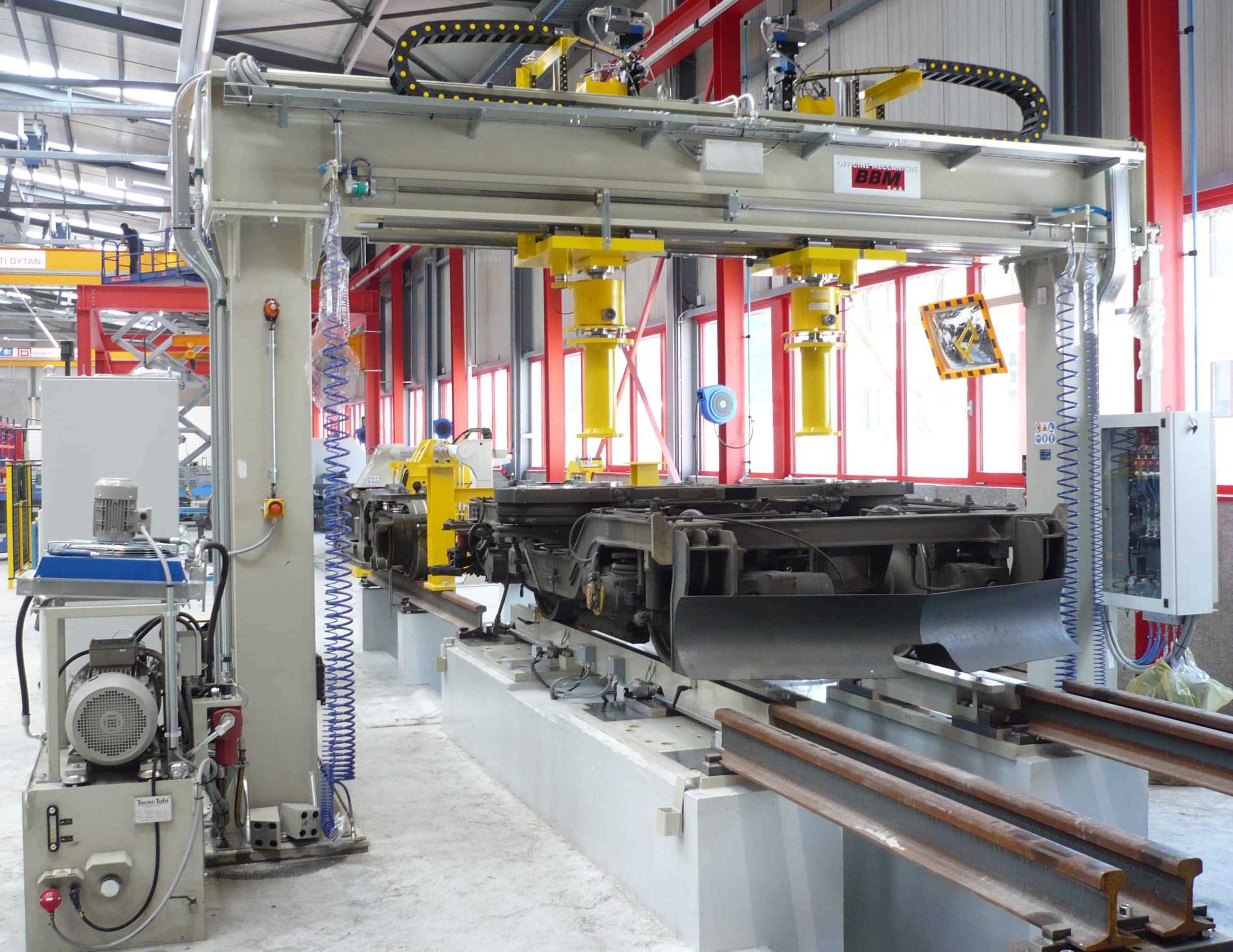

Open Frame Truck Press

The open frame truck press is an effective and economical solution for applying a specified load to the truck assembly with hydraulic pressing cylinders for assembly and tramming purposes.  The machine can precisely simulate AW-0 – AW-3 loading conditions with closed-loop control to properly inspect and adjust the operating height of the truck with minimal mechanical components.
